eFlow-MAX Dual Flow High Capacity Constant Airflow Regulator

eFlow-MAX Dual Flow High Capacity Constant Airflow Regulator

$370.00$780.00

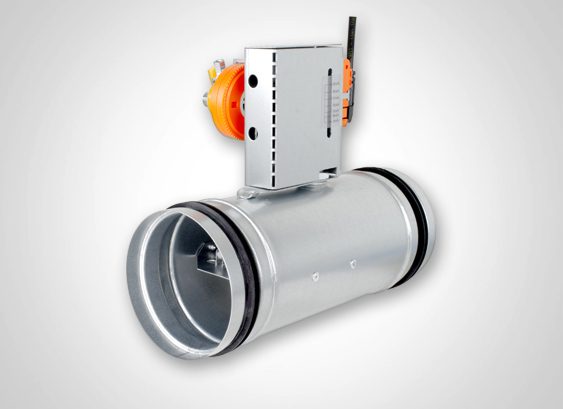

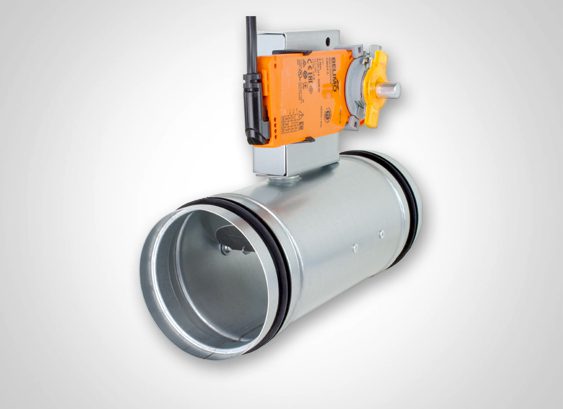

eFlow-Max Dual Flow is a motorized High Capacity Constant Airflow Regulator (CAR) that allows for two CFM setpoints. Controlled by Belimo actuator or equivalent.

Operating Pressure Range 0.2 to 4.o in w.g. (50-1000 Pa)



Equal to American aldes mr max high capacity constant airflow regulator, Young regulaor constant volume damper cvdxx .



Clear
View cart

● Diameters offered: 3”, 4″, 5”, 6”, 8″, 10″, 12”, 14”, 16″
● Operating Pressure Range: 0.2 to 4.0 in w.g. (50-1000Pa)
● Airflow settings: 24-2335 CFM
● Temperature Limits: -22° to 212°F (-30° to 100°C)
● Available with two CFM setpoints for dual flow air control
● Controlled by Belimo actuator or equivalent
● Temperature Limits: -22° to 212°F (-30° to 100°C)
● Suitable for both supply and exhaust applications
● Factory calibrated
● CFM settings adjustable
● Capable of maintaining constant airflow within + 10% for nominal airflow > 60
CFM (100 m3/h) and + 5 CFM (10 m3/h) for nominal airflow < 60 CFM. (100 m3/h) throughout the target operating pressure range of 0.2 to 4.0 in. w.g. (50 to 1000 Pa).
● Laser-welded, heavy galvanized steel body
● Energy efficient
● Ideal solution for lab control, clean rooms, meeting rooms, classrooms, concert halls, etc.

● Energy Efficiency Programs
● Lab Control
● Clean Rooms
● Hospitality/Hotels
● Healthcare
● High Rises
● Government Facilities
● Military facilities
● Commercial Buildings
● Residential Buildings
● Dormitories and Schools Buildings
● Office buildings

Description

Guaranteed for 5 years, from date of shipment, against all defects in material, provided material has been installed and used under normal conditions.



Additional information

Weight 8 lbs
Dimensions 8 × 8 × 8 in
Diameter and CFM Range

eFlow-MAX DF 3” Airflow Range 24-75 CFM, eFlow-MAX DF 4” Airflow Range 40-130 CFM, eFlow-MAX DF 5” Airflow Range 60-165 CFM, eFlow-MAX DF 6” Airflow Range 100-265 CFM, eFlow-MAX DF 8” Airflow Range 150-530 CFM, eFlow-MAX DF 10” Airflow Range 295-940 CFM, eFlow-MAX DF 12” Airflow Range 470-1650 CFM, eFlow-MAX DF 14” Airflow Range 530-1885 CFM, eFlow-MAX DF 16” Airflow Range 590-2355 CFM

Control Type

0-10 VDC, 24 Volts, 230 Volts

Technical Data Download

eFlow MAX, MAX Low Flow and Max Dual Flow Submittal Data Sheet
